Ultra HD 4K 2160p, MPEG2, MPEG4, H.264, H.265 / HEVC, DVB-S2, Conax, Ethernet, PVR

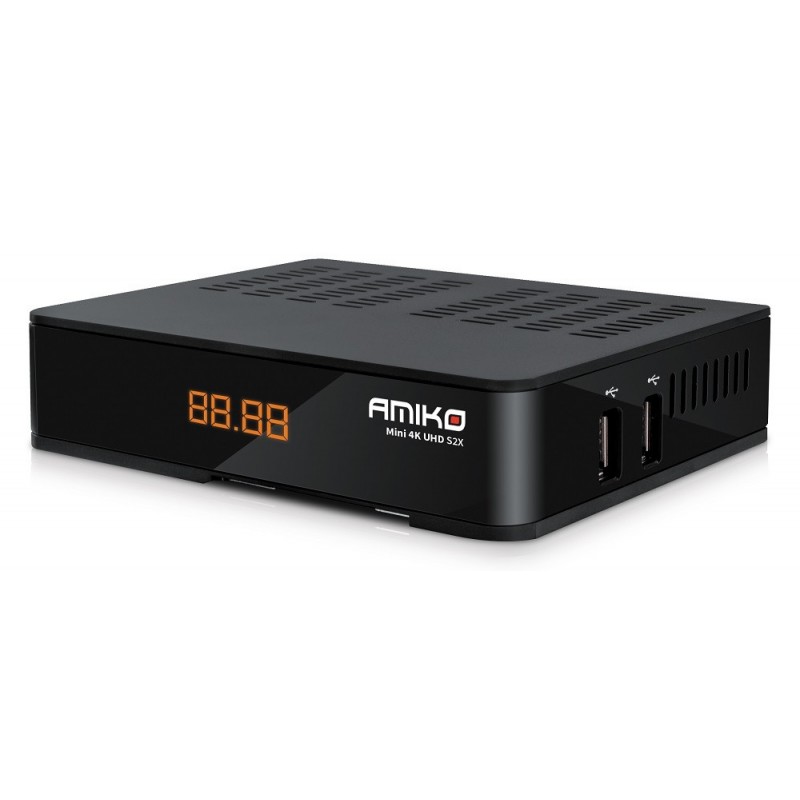

4K UHD Digital S2 Satellite Receiver
With Conax embedded card reader
2 High Speed USB 2.0 Connection Support External infra port
Ethernet connection
TimeShifting Support
Software Upgrade via USB
Digital Audio Bit-Stream via HD OUT
MKV, AVI, MPG, MP4, TS, VOB, JPEG & MP3 Playback Support
Low Power Consumption in Stand-By

MORE FEATURES

Tuner & Demodulation

• Tuner Type: DVB-S / DVB-S2
• Input Connector: F-type, Connector, Female
• Signal Level: -65 to -25 dBm
• LNB Power & Polarization: Vertical: +13V/+14V,
• Horizontal: +18V/+19V
• Current: Max. 400mA
• Overload Protection
• 22KHz Tone Frequency: 22±1KHz
• DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
• Demodulation: QPSK, 8PSK
• Input Symbol Rate: 2-45 Mbps,
• FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

MPEG TS A/V Decoding

• Transport Stream: MPEG-2, MPEG-4, H.264, H.265
• Input Rate: Max.120Mbit/s
• Aspect Radio: 4:3, 16:9, Letter Box
• Video Decoding: UHD 4K x 2K, HEVC/H.265, MPEG-4/H.264 SP@L3 to ASP@L5, MP@ML, MP@HL, MP@L4.1, HP@L4.1
• Video Resolution: 720*480p/i, 720*576p/i,1280*720p, 1920*1080p/i, 3840 *2160p
• Audio Decoding: AAC-LC, HE-AAC, LPCM, MP3, WMA, WAV
• Audio Mode: Left / Right / Stereo/ Mono
• Sampling Rate: 32, 44.1 and 48KHz

System Resources

• Main Processor: 1000 MHz
• Flash Memory: Serial Flash 8MB x 1
• DDR RAM: DDRIII 1866 128MBx2

A/V & Data Input/Output

• Ethernet: 10/100M RJ45
• USB: Two USB 2.0 slot Compatible
• Digital Video Output
• S/PDIF: Coaxial Digital Audio or Dolby Digital Bit Stream Output
• SCART: (1-CVBS, 1-L/R,SL,FB),or RCA output
• IR: Jack-type, External IR sensor connection
• RS232: Jack-type, Transfer rate 115.2Kbps, 9 pin D-sub Type

Physical Specifications

1. Size[W*H*D]: 146mm*110mm*35mm
2. Net Weight: 0.25 Kg
3. Operation Temperature: 0°C~+45°C
4. Storage Temperature: -10°C~+70°C
5. Storage Humidity: 5%~95% RH (Non-Condensing)

Garantie: 24Luni

Link catre prooducator: aici
