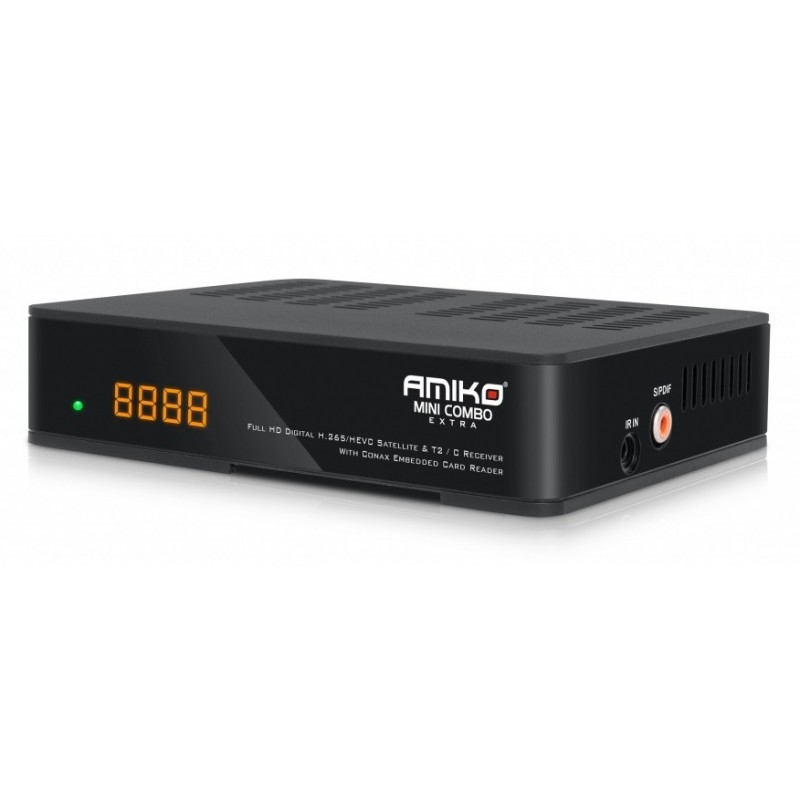

Receptor Amiko Mini HD Combo Extra cu tunere de satelit și cablu/terestru, Conax încorporat & conexiune Ethernet

Cititor de card Conax încorporat (Freesat, Focus Sat, TVR)
Suport decodare HEVC (H265)
Un tuner de satelit DVB-S2 & 1 tuner DVB-C/T2
5000 de canale (TV și Radio) programabile
Două conexiuni USB 2.0
Conexiune Ethernet & suport adaptor USB WiFi (Ralink RT5370 chip)
Senzor de telecomandă extern (opțional)
YouTube video (disponibilitate negarantată)
RSS Reader & Weather Forecast
Funcție PVR (Personal Video Recoder - înregistrare programe TV)
Funcție Timeshift (pauză/play)
Update firmware prin USB
True-color, On-Screen Display (OSD)
Electronic Program Guide (EPG)
Suport Subtitrare
Suport Teletext
Blocare parentală
Scanare frecvențe satelit & Fast Scan
Suport DiSEqC 1.0, 1.1, 1.2 și USALS
Ieșire Full HD (1080p) via HDMI
Consum în Stand-By: <0.5W

Specificații tehnice

 Procesor principal  2000 DMPIS ALI 3526
 Memorie Flash  8 MB
 Memorie DDR RAM  256 MB DDR3 1866 MHZ
 Tip tuner  DVB-S / DVB-S2
 Conector de intrare  Mufă tip F mamă
 Banda de frecvență  950MHz - 2150MHz
 Nivel de intrare semnal  -65 to -25dBm
 Tensiune de alimentare LNB  13V / 18V
 Sarcină maximă suportată  300 mA (protecție la suprasarcină)
 Semnal de comutare bandă L/H  22±1KHz (0.7V±0.02V)
 Control DiSEqC  Versiune 1.0, 1.1, 1.2, USALS
 Demodulator semnal  QPSK, 8PSK
 Symbol Rate  2-45Mbps, Convolution Code Rate
 FEC  1/2, 2/3, 3/4, 5/6, 7/8, 1/4, 1/3, 2/5, 3/5, 4/5, 8/9, 9/10
 Tip tuner  DVB-C / DVB-T / DVB-T2
 Conector de intrare  Tip IEC mamă
 Banda de frecvență  48-862 MHz
 Nivel de intrare semnal  -80dBm ÷ -20dBm
 Demodulator semnal  QPSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
 Symbol Rate  1.0 - 7.0 Ms/s
 Rată semnal intrare  Max 80Mbit/s
 Raport aspect  4:3, 16:9
 Decodare Video  H.265/HEVC, MPEG-2, MP@ML, MPEG-4 Part 10 / H.264
 Decodare Audio  AAC LC, AAC LC + SBR Level 2, AAC + Level 4, WMA pro, Dolby Digital, MPEG-1 Layer 1.2
 Mod Audio  Stânga, Dreapta, Stereo, Mono, Dolby digital, MPEG și AAC audio
 Rata de eșantionare Audio  32, 44.1, 48KHz
 Ieșire Video digitală  HDMI 1.4 (1080p / 1080i / 720p / 576p / 480p / 576i / 480i)
 Mufă Ethernet  RJ45 10/100M
 Mufă USB  2 x Conexiune USB 2.0 High Speed (Type A)
 Ieșire AV  Conector Jack de 3.5mm
 Senzor infraroșu extern  DA prin conector Jack
 Ieșire Audio Digitală  S/PDIF Coaxial
 Tensiune de intrare  AC 100-240V 50/60Hz
 Tensiune de ieșire  DC 12V Maxim 2A
 Consum în stand-by  <0.5W
 Dimensiuni  144mm x 40mm x 110mm
 Masă  <1.0Kg
 Temperatura de funcționare  0°C ÷ +40°C
 Umiditate 5%÷95% RH (fără condens)

  • DVB-S2 Satellite & DVB-T2/C Terrestrial / Combo Receiver
  • One Conax Embedded card reader
  • H.265 / HEVC Codec support
  • 5000 channels (TV and Radio) programmable
  • External IR Sensor (Included in the package)
  • Two High Speed USB 2.0 Connection
  • Ethernet Connection & USB WiFi Support (Ralink RT5370 chip only)
  • YouTube videos
  • RSS Reader & Weather Forecast Functions (Ethernet or WiFi connection required)
  • DiSEqC 1.0, 1.1, 1.2 and USALS Compatible
  • Full HD (1080p) Output via HDMI
  • Channel Recording to External Storage Devices (from one frequency only)
  • Timeshift support
  • Channel Recording & Timeshifting Simulteniously (optional, only from same frequency)
  • Channel switching time less than 1 second
  • True-color, User Friendly On-Screen Display (OSD)
  • Full Picture In Graphic (PIG) function
  • Electronic Program Guide (EPG) for on screen channel information
  • Subtitle supported
  • Teletext supported by VBI insertion and software emulation
  • Parental lock facility by channel and program event
  • Program and Channel information transfer from receiver to receiver
  • Multi-Language support
  • RTC (Real-Time-Clock)
  • Power Consumption in Stand-By: <0.5W

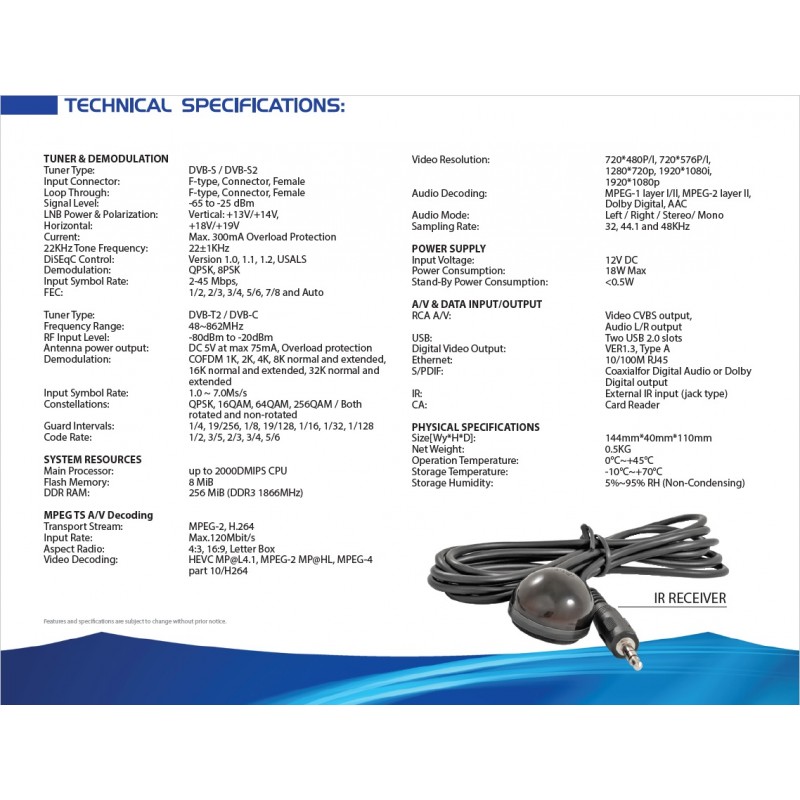

Tuner & Demodulation
Tuner Type: DVB-S / DVB-S2
Input Connector: F-type, Connector, Female
Loop Through: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V,
Horizontal: +18V/+19V
Current: Max. 300mA
Overload Protection
22KHz Tone Frequency: 22±1KHz
DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps,
FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

Tuner Type: DVB-T2 / DVB-C
Frequency Range: 48~862MHz
RF Input Level: -80dBm to -20dBm
Antenna power output: DC 5V at max 75mA, Overload protection
Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
Input Symbol Rate: 1.0 ~ 7.0Ms/s
Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated
Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

System Resources
Main Processor: up to 2000DMIPS CPU
Flash Memory: 8 MiB
DDR RAM: 256 MiB (DDR3 1866MHz)

MPEG TS A/V Decoding
Transport Stream: MPEG-2, MPEG-4 (H.264)
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: HEVC MP@L4.1, MPEG2 MP@HL, MPEG-4 part 10/H.264
Video Resolution: 720*480p/i, 720*576p/i, 1280*720p, 1920*1080p/i
Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby Digital, AAC
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHz

A/V & Data Input/Output
AV OUT: Video RGB&CVBS output, Audio L/R output (SCART)
LAN: 10/100M RJ-45 Ethernet Connection
USB: Two USB 2.0 slots
HDMI: VER1.3, Type A, Dolby Digital Bit-Stream Output
S/PDIF: Coaxial
IR: External IR input (jack type)

Physical Specifications
Size[W*H*D]: 144mm x 40mm x 110mm
Net Weight: 0.50 Kg
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)

Garantie: 24 luni

Manual de utilizare limba română: AICI

Link către producător: AICI

Link către software: -original

                                      -alte software

Poze suplimentare: AICI

Amiko Mini Combo Extra

  • Producători Amiko
  • Cod produs: Amiko Mini Combo Extra
  • Disponibilitate: În Stoc
  • 240,00Lei

  • Fără TVA: 201,68Lei
